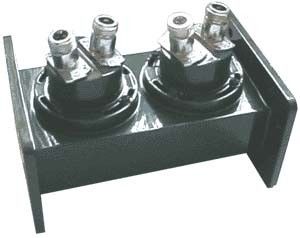

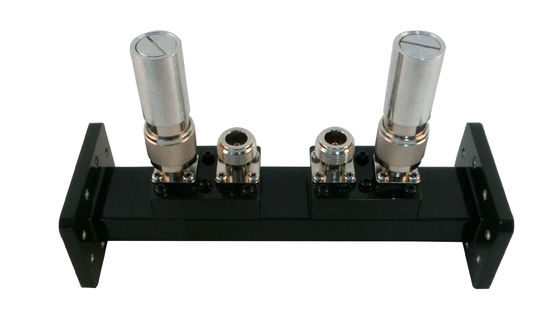

| Высокий свет: | 50dB Dual Directional Loop Coupler,1.1VSWR Dual Directional Loop Coupler,1.73GHz Dual Directional Loop Coupler |
||
|---|---|---|---|
CWJ изготовляет стандартную номенклатуру товаров муфт петли покрывая широкий диапазон изменения частот. Для больше информации чувствуйте, что свободно вызвать нас и обсудить ваши потребности с одним из наших инженеров по сбыту.
| Двойной вид продукции муфты петли Diretional | |||||||||
| МОДЕЛЬ НЕТ | РЯД FREQ | VSWR | СОЕДИНЕНИЕ |
DIREC TIVITY |
ДЕЯТЕЛЬНОСТЬ TEMP |
ТИП ФЛАНЦА |
РАБОЧАЯ ГРУППА ТИП |
СОЕДИНИТЕЛЬ | МАТЕРИАЛ |
| (GHz) | Макс | (dB) | минута (dB) | (°C) | |||||
| CWJ14WDHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ14WHHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ14WDHHC | 1.13-1.73 | 1,1 | 30-70 | 20 | -40~+70 | FDP14/FDM14 | WR650 | N-50K | Al/Cu |
| CWJ18WDHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ18WHHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ18WDHHC | 1.45-2.20 | 1,1 | 30-70 | 20 | -40~+70 | FDP18/FDM18 | WR510 | N-50K | Al/Cu |
| CWJ22WDHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ22WHHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ22WDHHC | 1.72-2.61 | 1,1 | 30-70 | 20 | -40~+70 | FDP22/FDM22 | WR430 | N-50K | Al/Cu |
| CWJ26WDHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ26WHHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ26WDHHC | 2.17-3.30 | 1,1 | 30-70 | 20 | -40~+70 | FDP26/FDM26 | WR340 | N-50K | Al/Cu |
| CWJ32WDHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ32WHHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ32WDHHC | 2.60-3.95 | 1,1 | 30-70 | 20 | -40~+70 | FDP32/FDM32 | WR284 | N-50K | Al/Cu |
| CWJ40WDHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ40WHHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ40WDHHC | 3.22-4.90 | 1,1 | 30-70 | 20 | -40~+70 | FDP40/FDM40 | WR229 | N-50K | Al/Cu |
| CWJ48WDHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ-48WHHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ48WDHHC | 3.94-5.99 | 1,1 | 30-70 | 20 | -40~+70 | FDP48/FDM48 | WR187 | N-50K | Al/Cu |
| CWJ58WDHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ58WHHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ58WDHHC | 4.64-7.06 | 1,1 | 30-70 | 20 | -40~+70 | FDP58/FDM58 | WR159 | N-50K | Al/Cu |
| CWJ70WDHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ70WHHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ70WDHHC | 5.38-8.17 | 1,1 | 30-70 | 20 | -40~+70 | FDP70/FDM70 | WR137 | N-50K | Al/Cu |
| CWJ84WDHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ84WHHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ84WDHHC | 6.57-9.99 | 1,1 | 30-70 | 20 | -40~+70 | FBP84/FBM84/FBE84 | WR112 | N-50K | Al/Cu |
| CWJ100WDHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
| CWJ100WHHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
| CWJ100WDHHC | 8.20-12.4 | 1,1 | 30-70 | 20 | -40~+70 | FBP100/FBM100/FBE100 | WR90 | N-50K | Al/Cu |
