| Высокий свет: | 100W Waveguide Termination,1.13GHz Waveguide Termination,WR650 Waveguide Termination |
||
|---|---|---|---|

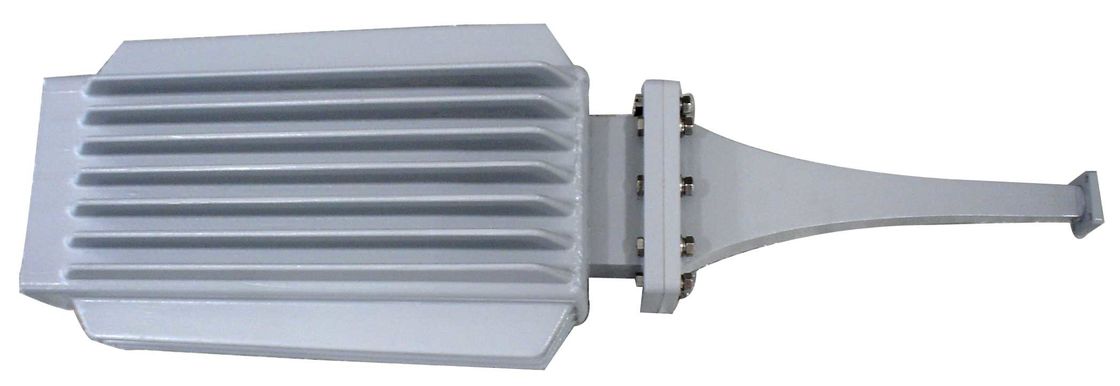

CWJ изготовляет широкий выбор прекращений наивысшей мощности. Пожалуйста вызовите нас и обсудите ваши особенные потребности с одним из наших инженеров по сбыту.
| Вид продукции прекращения наивысшей мощности волновода | |||||||
| МОДЕЛЬ НЕТ |
FREQ РЯД |
*** VSWR | СИЛА AVG | РАБОЧАЯ ГРУППА ПЕЧАТАЕТ (IEC/EIA) | ТИП ФЛАНЦА | МАТЕРИАЛ |
Схема данных |
| (GHz) | (Макс) | (W) | |||||
| CWJ14WHPL100PA | 1.13-1.73 | 1,2 | 100 | R14/WR650 | FDP/FDM | Al |  |
| CWJ14WHPL350PA | 1.13-1.73 | 1,2 | 350 | R14/WR650 | FDP/FDM | Al | |
| CWJ14WHPL500PA | 1.13-1.73 | 1,2 | 500 | R14/WR650 | FDP/FDM | Al | |
| CWJ14WHPL1000PA | 1.13-1.73 | 1,2 | 1000 | R14/WR650 | FDP/FDM | Al | |
| CWJ18WHPL100PA | 1.45-2.20 | 1,2 | 100 | R18/WR510 | FDP/FDM | Al/Cu | |
| CWJ18WHPL300PA | 1.45-2.20 | 1,2 | 300 | R18/WR510 | FDP/FDM | Al/Cu | |
| CWJ18WHPL500PA | 1.45-2.20 | 1,2 | 500 | R18/WR510 | FDP/FDM | Al/Cu | |
| CWJ18WHPL1000PA | 1.45-2.20 | 1,2 | 1000 | R18/WR510 | FDP/FDM | Al/Cu | |
| CWJ22WHPL100PA | 1.72-2.61 | 1,15 | 100 | R22/WR430 | FDP/FDM | Al/Cu | |
| CWJ22WHPL250PA | 1.72-2.61 | 1,15 | 250 | R22/WR430 | FDP/FDM | Al/Cu | |
| CWJ26WHPL300PA | 2.17-3.30 | 1,15 | 300 | R26/WR340 | FDP/FDM | Al/Cu | |
| CWJ26WHPL800PA | 2.17-3.30 | 1,15 | 800 | R26/WR340 | FDP/FDM | Al/Cu | |
| CWJ32WHPL250PA | 2.60-3.95 | 1,1 | 250 | R32/WR284 | FDP/FDM | Al/Cu | |
| CWJ32WHPL500PA | 2.60-3.95 | 1,1 | 500 | R32/WR284 | FDP/FDM | Al/Cu | |
| CWJ40WHPL300PA | 3.22-4.90 | 1,1 | 300 | R40/WR229 | FDP/FDM | Al/Cu | |
| CWJ48WHPL70PC | 3.94-5.99 | 1,1 | 70 | R48/WR187 | FDP/FDM | Al/Cu | |
| CWJ48WHPL100PC | 3.94-5.99 | 1,1 | 100 | R48/WR187 | FDP/FDM | Al/Cu | |
| CWJ48WHPL400PC | 3.94-5.99 | 1,1 | 400 | R48/WR187 | FDP/FDM | Al/Cu | |
| CWJ48WHPL500PC | 3.94-5.99 | 1,1 | 500 | R48/WR187 | FDP/FDM | Al/Cu | |
| CWJ48WHPL1000PC | 3.94-5.99 | 1,1 | 1000 | R48/WR187 | FDP/FDM | Al/Cu | |
| CWJ58WHPL50PC | 4.64-7.05 | 1,1 | 50 | R58/WR159 | FDP/FDM | Al/Cu | |
| CWJ58WHPL800PC | 4.64-7.05 | 1,1 | 800 | R58/WR159 | FDP/FDM | Al/Cu | |
| CWJ70WHPL75PC | 5.38-8.17 | 1,1 | 75 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL150PC | 5.38-8.17 | 1,1 | 150 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL200PC | 5.38-8.17 | 1,1 | 200 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL250PC | 5.38-8.17 | 1,1 | 250 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL300PC | 5.38-8.17 | 1,1 | 300 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL500PC | 5.38-8.17 | 1,1 | 500 | R70/WR137 | FDP/FDM | Al/Cu | |
| CWJ70WHPL550PC | 5.38-8.17 | 1,1 | 550 | R70/WR137 | FDP/FDM | Al/Cu | |
| ПК CWJ84WHPL500 | 6.57-9.99 | 1,1 | 500 | R84/WR112 | FDP/FDM | Al/Cu | |
| CWJ84WHPL300PC | 6.57-9.99 | 1,1 | 300 | R84/WR112 | FDP/FDM | Al/Cu | |
| CWJ100WHPL100PC | 8.20-12.40 | 1,1 | 100 | R100/WR90 | FBP/FBM/FBE | Al/Cu | |
| CWJ100WHPL200PC | 8.20-12.40 | 1,1 | 200 | R100/WR90 | FBP/FBM/FBE | Al/Cu | |
| CWJ100WHPL300PC | 8.20-12.40 | 1,1 | 300 | R100/WR90 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL50PC | 9.84-15.0 | 1,1 | 50 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL75PC | 9.84-15.0 | 1,1 | 75 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL100PC | 9.84-15.0 | 1,1 | 100 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL150PC | 9.84-15.0 | 1,1 | 150 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL200PC | 9.84-15.0 | 1,1 | 200 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ120WHPL400PC | 9.84-15.0 | 1,1 | 400 | R120/WR75 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL50PC | 11.9-18.0 | 1,1 | 50 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL100PC | 11.9-18.0 | 1,1 | 100 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL200PC | 11.9-18.0 | 1,1 | 200 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL300PC | 11.9-18.0 | 1,1 | 300 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL400PC | 11.9-18.0 | 1,1 | 400 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ140WHPL500PC | 11.9-18.0 | 1,1 | 500 | R140/WR62 | FBP/FBM/FBE | Al/Cu | |
| CWJ180WHPL50PC | 14.5-22.0 | 1,15 | 50 | R180/WR51 | FBP/FBM/FBE | Al/Cu | |
| CWJ180WHPL500PC | 14.5-22.0 | 1,15 | 500 | R180/WR51 | FBP/FBM/FBE | Al/Cu | |
| CWJ220WHPL100PC | 17.6-26.7 | 1,15 | 100 | R220/WR42 | FBP/FBM/FBE | Al/Cu | |
| CWJ220WHPL200PC | 17.6-26.7 | 1,15 | 200 | R220/WR42 | FBP/FBM/FBE | Al/Cu | |
| CWJ260WHPL100PC | 21.7-33.0 | 1,15 | 100 | R260/WR34 | FBP/FBM/FBE | Al/Cu | |
| CWJ320WHPL30PC | 26.3-40.0 | 1,15 | 30 | R320/WR28 | FBP/FBM/FBE | Al/Cu | |
| CWJ400WHPL10PC | 32.9-50.1 | 1,15 | 10 | R400/WR22 | FUGP | Cu | |
| CWJ400WHPL20PC | 32.9-50.1 | 1,15 | 20 | R400/WR22 | FUGP | Cu | |
